700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing

Sertifikasi
Cina Qingdao Kingway Industry Co., Ltd. Sertifikasi
Cina Qingdao Kingway Industry Co., Ltd. Sertifikasi
I 'm Online Chat Now

700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing

700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing
700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing 700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing 700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing 700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing 700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing 700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing

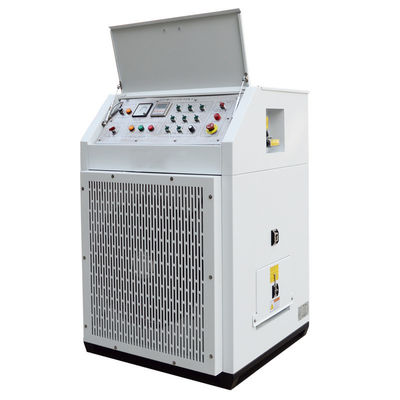

Gambar besar :  700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing

Detail produk:
Tempat asal: Shandong, Cina
Nama merek: Kingway
Nomor model: KL700
Syarat-syarat pembayaran & pengiriman:
Harga: $20,000.00/units >=1 units

700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing

Deskripsi
Tegangan nominal: 400V Kecepatan: 1500RPM
Frekuensi: 50Hz Sistem awal: Mulai jarak jauh
Jenis: Tipe senyap, Tipe Portabel Tipe Sistem Pendingin: Sistem Pendingin Udara
Faktor daya: 1.0 Beban resistif: 9 langkah
Kekuatan Resistif: 500kw/500kva Kekuatan yang tampak: 500KW
Antarmuka komunikasi: RS232/RS485 Kontaktor: Schneider
Sekering: MIRO PLC: ilmu pengetahuan
Sekutu Resistor: RAJA JALAN Perangkat Lunak Pengolah Data: RAJA JALAN
Jaminan: 12 bulan

Digital AC Portable Resistive Three-Phase Load Banks

Lead times are currently less than 3 months!

Three-phase model options range from small, portable, low-power units, to high-power, indoor & outdoor permanent resistive load banks. Models come standard with push-button manual controls as well as PC software controls offering advanced load profile solutions for working with complex testing applications.  Units are suitable for various uses including testing of generators, UPS systems, data center power systems, power supplies, HVAC systems, and other critical power sources. Single-phase load bank models also available.

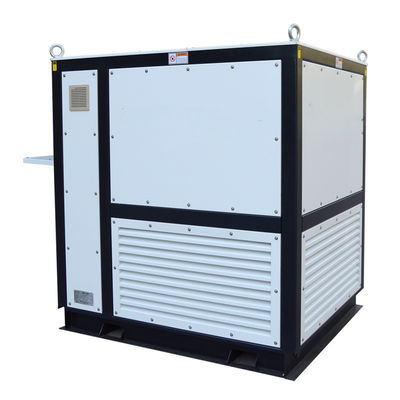

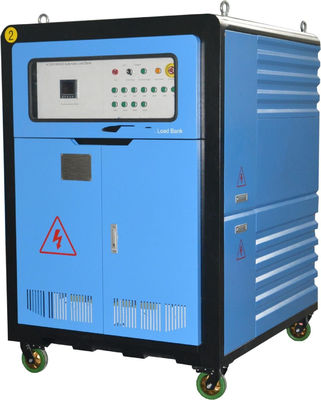

Design elements incorporate a robust steel outer chassis with isolated interior chambers for control and load elements. This ensures electrical components are kept away from dirt and debris for long-life reliability in harsh test environments. Portable options include lifting eyes and caster wheels while permanent and outdoor rated units are available. All resistive load banks come with multiple built-in automatic safety shutdowns and manual override shutdown.

Benefits

  • Digital metering for high-precision data read-out
  • User controlled manually or through software with programmed load profile

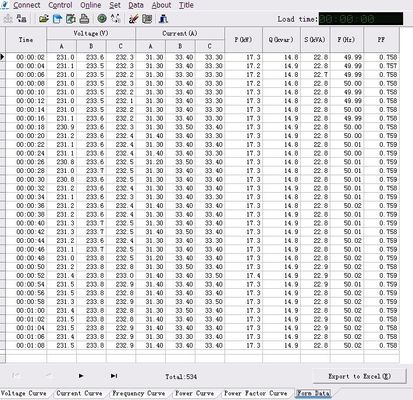

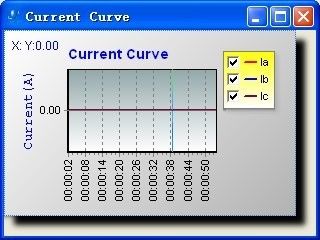

  • Detailed data management, analysis, and report generation through software
  • Automatic load testing allows user to set custom periods of power and time

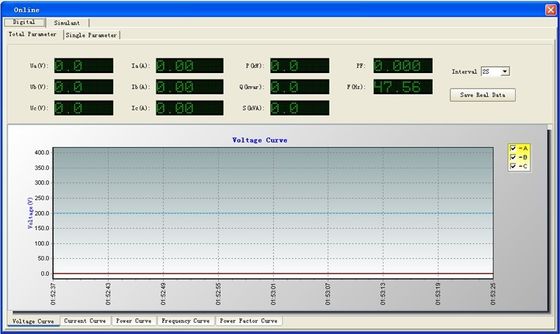

  • Display of current, voltage, power, power factor, frequency, and time
  • Emergency manual stop button for quick termination of load test
  • Automatic stop protection for adverse conditions including over-load, over-voltage, high temperature, short-circuit
  • Optional serial RS-485 Modbus controls
  • Optional dry contact terminal controls
  • Optional outdoor rated enclosures (available on models over 100kw)

Voltage Versions

 240, 400, 480  VAC

kW Models

1,2,2,5,10, 10,20,50,100 kW

Frequency

50/60 Hz

Resolution

1 kW

Configuration

Three Phase, 4 Wire Wye or 3 Wire Delta connection available

700kw 400v 50hz3 Phasse 4 Wire Resistive Load Bank for generator testing 0
